Tried and True: Checklist for Winding a Warp

I am winding a narrow warp for my next drawloom project. My warping reel is in a little four-foot-by-four-foot corner of my drawloom studio, and has just enough room to maneuver. When I am ready to wind a warp the first thing I pull out is my trusty checklist. I use a checklist for efficiency. It keeps me on track. And it’s more dependable than my memory.

Checklist for Winding a Warp

__ Weigh warp thread and write the amounts on the project notes. By weighing the thread before and after a project, you will know exactly how much warp thread was used in the project.

__ Stick a sample four-inch thread to each thread label; put a rubber band around the tube. After you finish winding the warp, you can quickly pair each yarn with its correct label because of the sample thread stuck to the label.

__ Bring supplies to the warping reel. If your warping reel is in a different room, or in a separate building, like mine is, make sure you have all you need before you head to the warping reel.

+ Thread for the project

+ Thread stand, if not already in place

+ Scissors

+ Choke ties

+ Project notes, with fully completed draftAn incomplete draft may give faulty information. Also, a review of the project notes and draft is a good idea, especially if weeks or months have passed since you wrote it all down.

Checklist for winding a warp.

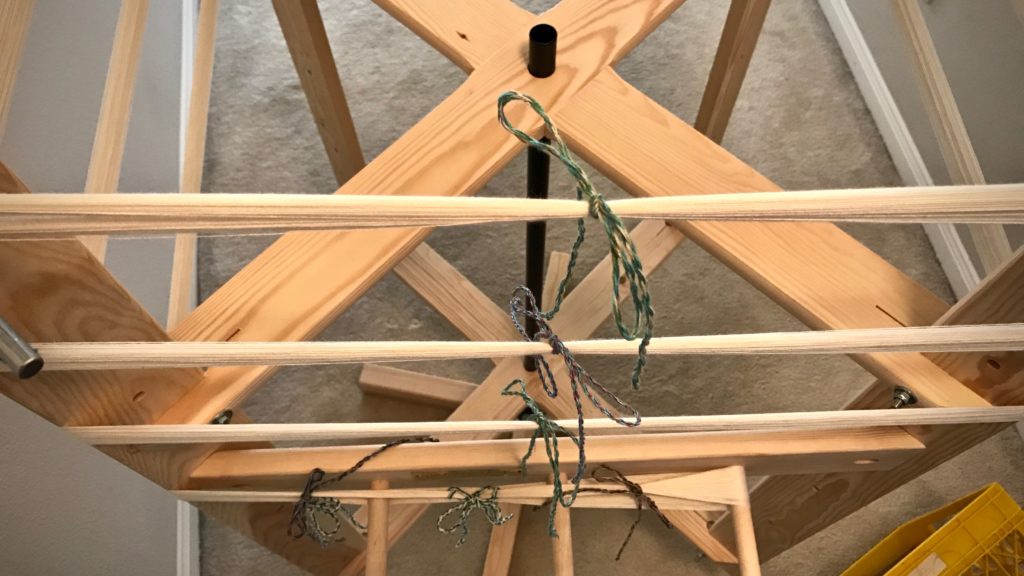

__ Set up the warping reel for warp length. Use a guide string, or measure the distance needed to place the pegs and turning pin at the right place on the warping reel for the warp you are going to wind.

Checklist for winding a warp.
Checklist for winding a warp.

__ Set out the thread on the thread stand. Wind the warp with two or more threads at the same time, for best results.

__ Hang or tape up the project notes at eye level. Project notes show the warp sequence and other vital information.

__ Take note of warp length, number of bouts, and number of ends in each bout. Aim for 25 cm (10”) or less in the reed, or 200 or fewer ends, per bout. For the drawloom, wind the warp in pattern unit increments when possible.

Checklist for winding a warp.

__ Wind first bout, counting warp ends. Use a cord between groups of ends to keep track of the counting.

Checklist for winding a warp.

__ Visually check the warp order. Check to see that the warp order on the warping reel matches the warp sequence on the project notes. (I added this step to my checklist after the time I omitted 6 threads at the center of a warp, discovered after threading the loom.)

__ Tie off around the turning pin or the outside peg. Always wind the last pass with two or more threads together so you can tie them around the pin or peg.

__ Tie the lease cross; and tie choke ties on the warp. Tie the cross first, and tie any passes of the warp directly above the cross. Then, spin the wheel and tie the warp wherever it passes on the side opposite the cross. Also tie at the turning pin, at the top and bottom of the loop.

Checklist for winding a warp.

__ Chain the warp bout. Start the chain by holding the loop at the turning pin, and pull out the pin. Chain the warp, ending at the cross. (I use my knee, not so gracefully, to control the turning of the reel as I chain the warp.)

Checklist for winding a warp.

__ Place the warp bout on the loom, with the lease cross end going through the beater.

__ Wind remaining bouts, following the same procedure. When you place the warp chain on the loom double check the warp sequence to make sure the bouts are in the right order.

Checklist for winding a warp.
Checklist for winding a warp.

__ Roll up the thread tubes, replace labels, weigh thread and write down amounts, and place thread tubes in project bin. Each loom has its own project bin to hold the thread for that project.

Checklist for winding a warp.

__ Put away the choke ties, scissors, and thread holder.

__ Fold up the warping reel.

Checklist for winding a warp.

Get ready to dress the loom!

Checklist for winding a warp.

May you enjoy the process.

Happy Weaving,
Karen

10 Comments

  • Elisabeth says:

    Thank you so much! I realize it has been awhile, long enough to forget the steps. I’ll wind a warp today following these instructions. Then I will have two towel warps and can hopefully dress the loom without my usual long pause I’ll weave the easy one first, to get back into it, and have as a goal to have some towels ready as Christmas gifts.

    • Karen says:

      Hi Elisabeth, I’m glad you can use this! A checklist really helps me when I’ve been away from the loom for a while. I don’t have to re-think everything. I’m looking forward to hearing more about your towels. They will be beautiful, I’m sure!

      Happy weaving,
      Karen

  • Betsy says:

    Ah, yes, tie the cross. I don’t know how many times I’ve come *this close* to forgetting that step.

  • Karen Simpson says:

    Thank you so much….I’ve never weighed before to determine usage amount…will do. I also number my bouts with a sticky…learned the hard way..ha….

    • Karen says:

      Hi Karen, I’ve learned a lot of things the hard way, too. 🙂 I also weigh my weft thread before and after. The accumulated data helps when planning new projects.

      Happy weaving,
      Karen

  • Barbara says:

    I use a different color tie at the top of the lease cross so I know which way is up when taking the warp bout to the loom. Got confused once with a striped warp, took a bit of “undoing” to be sure I didn’t have the same colored stripes next to each other.

    • Karen says:

      Hi Barbara, Thanks for sharing your helpful tip. Getting the warp bouts mixed up at the loom is not fun. Some of our best lessons come through fixing our mistakes!

      Happy weaving,
      Karen

  • Summa Irukalam says:

    This is terrific! Thank you.

Leave a Reply


Warp Chains Are Beautiful

The reel spins ‘round, ‘round, ‘round one way, and then ‘round, ‘round, ‘round back the other way. Rhythmic, mesmerizing, and strangely soothing. Counting, as I wind two ends at a time, I find myself whispering “2, 4, 6, 8, 10, 12, ….” The warping reel is one of my favorite pieces of equipment. This warp has seven colors of 22/2 Cottolin for bath towels which are to accompany the hand towels I recently made. I am winding this in four bouts, and there are different color changes in each bout.

Winding a warp for cottolin bath towels.
First bout on the warping reel.
Making cottolin bath towels.
Second bout. Choke ties about every meter keep the ends from shifting as the warp bout is chained and taken to the loom.
Making a warp for handwoven bath towels. Cottolin.
Third bout. Each of the four bouts has nearly the same number of warp ends.
Glimakra warping reel - one of my favorite pieces of equipment!
Fourth bout.

I marvel at the combination of thread colors as I chain each bout off the reel. The warp chains look beautiful. They always do. Warp chains are dreams in the making, where anything is possible. Haven’t you dreamt of handwoven bath towels?

Winding a warp on the Glimakra warping reel.
Came close to running out of thread on some of the tubes. (I did have backup tubes, but not from the same dye lots.)
Beautiful warp chains!
Beautiful warp chains, ready for the loom.

When we listen closely, we can hear the inaudible. Our hearts can hear the softest whisper. “2, 4, 6, 8, 10, 12, …” Even the hairs on our head are numbered by the Grand Weaver who planned our existence. Our days are numbered, as well. And when our heart is listening, we can hear the quiet whisper of the Lord Jesus, “Are you weary and burdened? Come to me, and I will give you rest.”

May you listen for the softest whisper.

Gently,
Karen

9 Comments

  • Beth Mullins says:

    Beautiful colors! I’m looking forward to seeing the warp spread across the reed. Best to you and yours!

  • Nannette says:

    The promise of the future beauty. The beginning of a process that completes at the plans and skills of the weaver. Time will tell.

    I always gorge on your color choices.

    Thank you.

    • Karen says:

      Hi Nannette, There’s always an element of time that holds the promise. I’m glad you enjoy the color choices. Choosing colors one of the most exciting parts about weaving for me.

      All the best,
      Karen

  • LJ Arndt says:

    Beautiful colors, looking forward to seeing the towel sets when they are complete and put together as the sets.

    • Karen says:

      Hi LJ, Making towel sets for our bathroom is something I’ve thought about doing for a long time. It’s nice to see it coming to pass. Thanks for your encouragement.

      Happy weaving,
      Karen

  • Ruth says:

    Karen,
    Thank you for your thoughts about listening to the whispers in our lives. Your words are always a breath of fresh air and I appreciate your reminders to look closely into my life and know that God is working his miracles in the smallest things. Looking forward to seeing your bath towels – wrapping up in a handwoven bath towel is such a luxury!
    Blessings to you and yours.

    • Karen says:

      Hi Ruth, I like your words that God is working his miracles in the smallest things. So true!

      I suppose that handwoven bath towels are a luxury. It’s nice to be surrounded by handwoven articles, simple luxuries.

      Blessings to you,
      Karen

Leave a Reply


Two Threads Are Better than One

Here’s a secret: Two threads are better than one. To measure a warp, I always, without exception, wind the warp with two or more threads together. A warp that is wound with a single thread is prone to tangle as threads twist around each other. A warp wound with pairs of threads won’t do that.

Winding a linen warp. Always 2 threads together.

Choke ties secure the warp bout around the starting pin on the warping reel.

Smooth warping tip: Always wind a warp with at least two threads at a time.

I hold two threads in my right hand, with my little finger separating them, to wind the warp. My left hand turns the warping reel. I purchase enough thread to be able to wind with two tubes at a time. Any thread that remains unused goes toward another project.

I am particular about this warp. It’s linen, so consistency matters. Tangles would disrupt the even tension the linen needs. I have dräll in five-shaft satin in mind as I take each careful step to dress the loom. I expanded the loom to ten shafts to be able to weave this! Expect happy weaving, to be sure, but imagine how pleasant it will be to hold this dreamed-of cloth in my hand. That future cloth gives meaning to my present efforts at the loom.

One of my weaving spaces.

Various stages of weaving. Winding 16/2 unbleached line linen to warp the Standard loom. The Baby Loom (Glimåkra Ideal) in the background is in the middle of rag-rug weaving.

Ten shafts for dräll in five-shaft satin.

Ten shafts in place on the Big Loom (Glimåkra Standard) to prepare the loom for weaving dräll in five-shaft satin.

There must be meaning beyond this life for us to find meaning in this life. The end of the weaving is the beginning of the life of the cloth. There is purposeful preparation by the Grand Weaver, with a precisely measured warp. The back-and-forth shuttle is like the ticking of a clock, or the passing of years. The end is the beginning. Can you imagine the splendid setting the Grand Weaver has in mind for his hand-woven cloth?

May you keep the end in mind.

Yours,
Karen

9 Comments

  • Cindy Bills says:

    Yes, praise God! And thank you for the tip about winding two or more threads at once. I had never heard that before. I’m going to try it on my next warp. 🙂

    • Karen says:

      Hi Cindy, Let me know how it goes when you wind with two threads. I’m curious to see what kind of difference it makes for you.

      Happy weaving,
      Karen

  • Annie says:

    So I am wondering why ten shafts with a five shaft pattern? Will you be doing a double weave?
    As you know, I am a Rigid Heddle weaver, however, I am fascinated by floor looms and I am toying with the idea of learning how to weave on one. I have just ordered the draft book to learn how to read patterns and have started to research the different types of floor looms.
    I am curious to know why you chose the two looms that you mention here.
    Annie

    • Karen says:

      Hi Annie, You have some great questions!
      I can weave the satin with 5 shafts, but it would be the same all over. Ten shafts enable me to weave a pattern with two blocks. This gives the characteristic squares or rectangles in the fabric. It is still a single warp and weft, not a double weave structure.

      Your second question gives me an idea for another blog post – Why I weave on Swedish Looms. You can look for that in the near future. For now, I will say that I am fascinated with the simplicity, durability, and functionality of the Swedish countermarch looms. Everything about these looms work with anything I want to weave, from hearty rag rugs to fine linen lace, and make it a joy to dress the loom and weave.

      (Back when I was researching floor looms, like you are, a few well-meaning people told me the countermarch loom would be too complicated and/or too big. They were wrong. 🙂

      Thank you for asking!
      Karen

      • Annie says:

        Thank you for sharing that information, Karen. I have a clearer picture of your project now.

        And a better understanding of the Glimakra loom.

        Annie

  • Anonymous says:

    Your blog is very inspirational! Thank you.
    Linda

  • Tom Z. in IL says:

    Karen, it’s always a treat to stop by your blog. Your learning and experience have helped me a lot in the past even though I don’t comment a lot. This is a peaceful and relaxing place with lots of beautiful things and a great hostess! Thanks for just being here and passing on your knowledge and experience.

    I love the 2 thread cross and do it whenever I can. I adopted it a while back. I’ve found it’s a lot easier at the lease, to beam on with a 2 thread cross – less tangles and for me it seems easier to pick from for threading. I’ve even done a 4 thread and has no problems.

    Sometimes we must stand together in a group to better overcome the challenges of life. 😉

    • Karen says:

      Hi Tom, How thoughtful you are! I’m delighted to hear that you find this spot on the web to be a peaceful and relaxing place. Ahhh…

      You make a great point. A 2 thread cross does indeed seem easier to pick from for threading. I have also done 4 threads with no difficulties.

      And thank you for your superb conclusion. It helps to stand shoulder-to-shoulder when we face life’s challenges. We weren’t meant to go it alone!

      Happy weaving,
      Karen

Leave a Reply


Better than Black

The black and white towels I made last year were a big hit, and I wanted a repeat of that. So, when I started planning this unbleached cotton towel warp several weeks ago, I fully intended to make the border stripes black. It would be a stunning effect. I even ordered the black thread. But this week when I put my tubes of cotton thread on the table, I ended up saying no to the black. Even though that’s what I was sure I wanted. As a result, I don’t have the striking black accent; but I do have the soothing charm of beige and brass. (Thank you for your wonderful input on the color combinations in Pretty Fine Threads! I loved hearing your thoughts.)

Warping reel with 8-meter 24/2 cotton warp.

Choke ties are added about every meter, and the lease cross at the bottom is carefully tied for this eight-meter warp.

First of four bouts, 224 warp ends each.

First of four bouts, 224 warp ends each. Soft as a kitten.

Cotton warp ready for dressing the loom.

Beige and brass threads add understated elegance to the unbleached cotton warp.

I want to have what I want. I want to do what I’ve planned. I don’t like to tell myself no. But that’s exactly what Christ asks of those who want to follow Him. Say no to yourself. He’s not offering the easy way out. But when I let go of what I want, I come to find the gift of grace that has been prepared for me. And that’s when I realize that my loss was actually my gain.
